The New Internal Van Lift

The latest in liftgate technology, the V2 Series by Tommy Gate provides the maximum platform loading area while occupying the smallest possible space when stored in the rear of the van. The V2 combines sleek modern engineering with hands-free platform open and close, built-in cart retention ramp, and 1100lbs. of lifting capacity.

Liftgate Capacity
Liftgate Capacity Icon

1100 lbs.

Hydraulic System
Hydraulic System Icon

Dual-Cylinder

Van Lift Location
Van Lift Location Icon

Internally-Mounting

V2 Series Features

V2 Series models are loaded with standard features:

  • Platform Auto Open & Close
  • Dual-Function Control
  • Retention Ramp/ Taper
  • Aluminum Treadplate Bridge
  • Low-Profile Pump & Motor Box
V2 Series Overview Image A V2 Series Overview Image B
Dual-Function Control Image
Dual-Function Control

Pendant control with raise/lower toggle and secondary platform fold function.

Flat-Loading Taper  & Retention Ramp Image
Flat-Loading Taper & Retention Ramp

Platform rests flat at ground level, minimizing load angle. Retention ramp easily locks into place to secure wheel-based cargo.

  V2 Series - Model 56

Model Capacity Load Area Taper Travel Weight Applications Spec
V2-56-1140 FA34 1100 47  x  34 9 40 420 B
V2-56-1140 FA49 ¹ 1100 47  x  49 9 40 500 A

= Guaranteed Stock Model. Learn More.

  V2 Series - Model 47

Model Capacity Load Area Taper Travel Weight Applications Spec
V2-47-1140 FA42 ² 1100 38  x  42 9 40 420 C

= Guaranteed Stock Model. Learn More.

  1. FA49 Models must have the 9” retention ramp/taper engaged when storing the platform on lower roof van models to avoid the ramp contacting the van frame. See Application Chart below.
  2.  Liftgate model for a Chevy Express Van ONLY.



IMPORTANT:

- V2 Series liftgates are not compatible with floor-mounted rear heat or rear air conditioning.
- V2 Series liftgates reduce the door opening height by 2” (from the metal floor).



  Applications & Brackets - Cargo Van → V2 Series

Code Manufacturer Model Year Body Style Bracket Install
A, B Ford 2015 - 2022 ⁸ TRANSIT (medium roof) 15230
B Ford 2015 - 2022 ⁸ TRANSIT (low roof) 15794
A, B Ford 2015 - 2022 ⁸ TRANSIT (high roof) 15230
A, B Ford 2015 - 2022 ⁸ TRANSIT - Extended Body (high roof) 15418
A, B Dodge / Ram 2014 - 2022 ² PROMASTER (low roof) 15608
A, B Dodge / Ram 2014 - 2022 PROMASTER (high roof) 15608
A, B Dodge / Ram 2014 - 2022 PROMASTER - Extended Body (high roof) 15644
A, B Sprinter 2007 - 2022 ⁵-⁷ 170” WB Non-Extended 2500 (high roof) 15323
A, B Sprinter 2007 - 2022 ⁵-⁷ 170” WB Non-Extended 2500 (standard roof) 15323
A, B Sprinter 2007 - 2022 ⁵-⁶-⁷ 170” WB Extended 2500/3500/4500 (High Roof) 16302
A, B Sprinter 2007 - 2022 ²-⁷ 144” WB 1500/2500 (High Roof) 15966
A, B Sprinter 2007 - 2022 ²-⁷ 144” WB 1500/2500 (Standard Roof) 15966
B Nissan 2011 - 2022 NV (standard roof) 15576
A, B Nissan 2011 - 2022 NV (high roof) 15576
C Chevrolet / GMC 2011 - 2022 Express/ Savana 17508

 [*] IMPORTANT

Mounting kits for V2 liftgates are intended for the specified vehicle model only. Use of a mounting kit in a vehicle or manner other than intended is NOT recommended by Tommy Gate. Using an incorrect mounting kit will likely result in damage to the van's bumper, door and floor area, as well as to the lifting and folding mechanism of the liftgate.

  1. V2-47 liftgate model is only available for Chevy Express/GMC Savana.
  2. Retention ramp must be engaged before storing liftgate for F A42 and F A49 platforms on standard roof.
  3. V2 Series liftgates are not compatible with floor-mounted rear heat or rear air conditioning.
  4. V2 Series liftgates reduce the door opening height by 2" (from the metal floor).
  5. 2019-2022 Sprinter, 170" WB must have one of these factory installed options:
    V43 (wood floor), V39 (plastic floor), ZE6 (shelving prep).
  6. This application requires a 37-foot power cable, option E3.
  7. Mercedes-Benz requires the use of an auxiliary battery for all liftgates installed on Sprinter vans.
  8. Some Ford Transit installations may require a separate customer connection point kit to be ordered from Ford. See install instructions for details.





 Available Platforms

FA34 One-piece Steel-Framed Aluminum w/ 34” loading depth + 9” loading taper and Retention Ramp

V2 Series FA34 Open V2 Series FA34 Closed

FA49 One-piece Steel-Framed Aluminum w/ 49" loading depth + 9" loading taper and Retention Ramp

V2 Series FA49 Open V2 Series FA49 Closed

FA42 One-piece Steel-Framed Aluminum w/ 42” loading depth + 9” loading taper and Retention Ramp (FOR CHEVY EXPRESS/ GMC SAVANA ONLY)

V2 Series FA42 Open V2 Series FA42 Closed

  Standard Features

Retention Ramp Image
Retention Ramp

Retention ramp easily locks into place to secure wheel-based carts or cargo. Foot or hand activated.

Bridge Mounts Image
Bridge Mounts

Aluminum treadplate bridge mounts provide smooth transition for moving cargo to and from lift platform to vehicle bed.

Dual-Function Control Image
Dual-Function Control

Pendant control with raise/lower toggle and secondary platform fold function.

Remote Pendant Control Mounting Kit Image
Remote Pendant Control Mounting Kit

bracket and hook to store pendant control inside the vehicle (pendant sold separately)

Low-Profile Pump & Motor Box Image

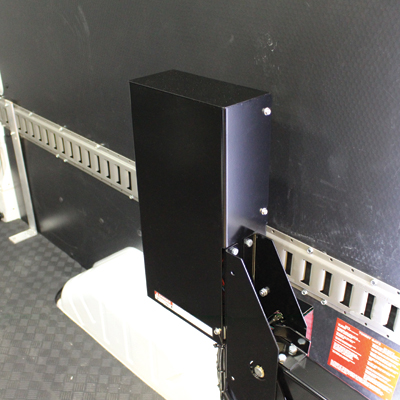

Low-Profile Pump & Motor Box

Pump and motor housing fits compactly over the wheel well.

  Available Options

Extra Bracket Kit Image
Extra Bracket Kit

top bracket and gussets only (one set included with liftgate)

Pump Box Relocation Kit Image
Pump Box Relocation Kit

allows the relocation of the pump box up to 6 feet from the original location

Extended Power Cable (E3) Image
Extended Power Cable (E3)

37-foot power cable

Documents

  V2 Series

Document Name Size Download
V2 Series Owner's Manual 1549kb
Tommy Gate Liftgate Guide 9133kb
Commercial Van Liftgate Brochure 841kb
V2 Series - Chevy Express/ GMC Savana 620kb
Estimated Installation Times 452kb
V2 Series - Interior Dimensions 504
V2 Series - Clearance Guide 504
Extended vs Non-Extended Commercial Van Measurements 504
V2 Platform Tilt Adjustment Instructions 60kb
V2 Technical Troubleshooting - Remove the Platform from the Liftgate 60kb
V2 Technical Troubleshooting - Raise and Lower the Liftgate via Jumper Wire 60kb
V2 Cylinder Repair or Replacement Instructions 60kb
V2 Pump Box Relocation Kit 60kb
Ford Transit - Battery Wiring Instructions 1766kb
V2 Series Mounting Instructions (Ford Transit -Low Roof 2015-PRESENT) 60kb
V2 Series Mounting Instructions (Ram Promaster 2014-PRESENT) 60kb
V2 Series Mounting Instructions (Ram Promaster - Extended 2014-PRESENT) 60kb
V2 Series Mounting Instructions (Sprinter 2500 - 170 WB, Non-Extended 2007-2018) 60kb
V2 Series Mounting Instructions (Nissan NV 2011-PRESENT) 60kb
V2 Series Mounting Instructions (Ford Transit -OTHER THAN Extended Body-Excludes Low Roof 2015-PRESENT) 60kb
V2 Series Mounting Instructions (Ford Transit -OTHER THAN Extended Body-Excludes Low Roof 2015-PRESENT) 60kb
Cargo Van - V2 Series Parts List 456kb

  Product Videos|    View all Product Videos

V2 Series Internal Van Liftgate (Chevy Express/ GMC Savana)
V2 Series - Transit Operation
Factory Montage
Tuckunder Development

  Related Blog Posts|    Visit Liftgate Central

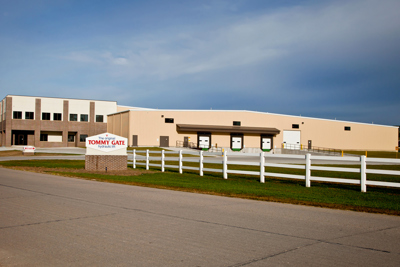

Tommy Gate Announces Investment in Italian Manufacturer Anteo

The Iowa liftgate producer extends its ownership overseas. Read More

Bosque Brewing Co. Lifts A TON of Beer

The busy beer makers' liftgate solution to beverage delivery. Read More

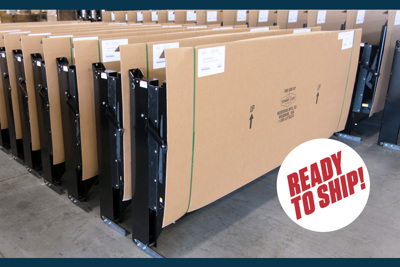

Liftgates ready to ship from the Tommy Gate warehouse
